Forepoling Drilling System

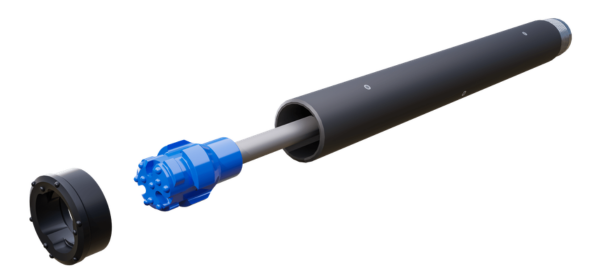

A Forepoling Drilling System is a pre-support method used in tunneling and underground excavation where steel pipes or bars are drilled ahead of the excavation face at a slight upward angle to form a protective canopy, stabilizing weak or fractured ground before tunneling progresses.

The Forepoling Drilling System is primarily used in tunnel construction for umbrella vault formation, metro tunneling, highway tunnels, water-bearing ground stabilization, and underground mining where weak, fractured, or loose soil conditions require pre-support before excavation.

Forepoling uses larger-diameter steel pipes or threaded bars grouted in place to form a pre-support canopy, while spiling uses smaller-diameter rebar dowels driven at shallow angles with gaps between them. Forepoling offers greater load-bearing capacity and is suited for more severely unstable ground conditions.

A Forepoling Drilling System is used in running ground such as water-bearing sand or silt, squeezing rock, severely fractured rock, and loose or caving ground where the tunnel roof and face require immediate pre-support before excavation begins.

The main types include self-drilling forepoling systems using steel pipes, grouted forepoling with cement injection for loose or water-bearing ground, pipe umbrella systems using larger-diameter pipes for heavy-duty support, and mechanized forepoling systems designed for large-scale tunneling operations.

In a standard Forepoling Drilling System, drilling tubes are typically around 12 to 15 meters in length. They are drilled horizontally or at a slight upward inclination into the tunnel face, forming a semicircular canopy pattern to protect the crown during excavation.

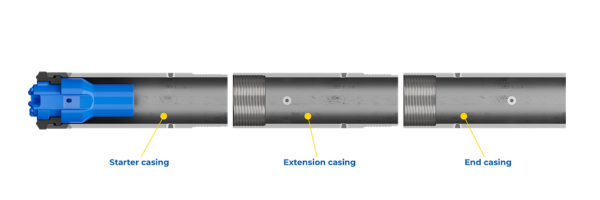

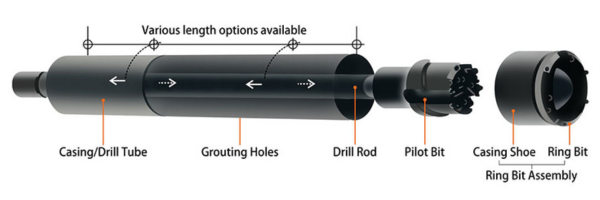

The key components include the drilling casing or pipe, the driver bit, the drilling crown, grouting valves for cement injection, and the support frame or guide. These components work together to ensure accurate placement and secure installation of the forepoles in the tunnel face.

Once the steel casing is drilled into the ground, cement grout is pumped through the pipe and exits via pre-drilled holes along its length. The grout fills surrounding voids and bonds the pipe with the surrounding ground, significantly improving stability and load-bearing capacity in weak or water-bearing zones.

Advantages include immediate face support that reduces collapse risk, adaptability to various tunnel shapes and sizes, faster installation enabling continuous excavation, compatibility with other support systems like rock bolts and shotcrete, and improved worker safety in challenging ground conditions.

Yes, the Forepoling Drilling System is widely used in metro and urban tunneling projects. It minimizes surface settlement and reduces the risk of damage to surrounding buildings and infrastructure, making it ideal for densely populated urban environments where ground disturbance must be tightly controlled.

In the New Austrian Tunneling Method (NATM), the Forepoling Drilling System serves as a critical pre-support measure. It is installed ahead of the excavation face to stabilize weak ground before shotcrete, rock bolts, and lattice girders are applied as the primary support structure.

While both use steel pipes for pre-support, a pipe umbrella system uses larger-diameter pipes ranging from 4 to 12 inches drilled on close spacing to form a longer horizontal canopy of 30 to 60 feet. A standard Forepoling Drilling System uses smaller pipes over shorter lengths and is suited for moderate ground instability.

Forepoling Drilling Systems primarily use high-strength steel pipes, self-drilling steel anchors, threaded steel bars, and grouting materials such as cement. The choice of material depends on the ground conditions, load requirements, and whether water-bearing strata need to be sealed during the tunneling process.

Choosing the right Forepoling Drilling System depends on factors such as ground type and stability, water ingress risk, tunnel diameter and shape, depth of excavation, required load-bearing capacity, and project timeline. Consulting with a specialized supplier like Argentium ensures the right system is matched to your specific site conditions.

Argentium is a trusted supplier of Forepoling Drilling Systems in India, offering high-quality components including self-drilling pipes, drilling crowns, grouting systems, and driver bits for tunneling and underground construction projects. Their systems are designed for durability, precision, and performance in demanding ground conditions.
