MEGABolt-PT Bar

The MEGABolt-PT Bar by Argentium is a prestressing steel bar system designed to efficiently apply prestress force across a wide range of structural applications. It features a continuous rolled-in thread-like deformation pattern along its entire length, allowing nuts, couplers, and anchorages to be threaded on at any point — eliminating the need for precision machined ends. It is used in both permanent and temporary applications in tunneling, bridge construction, rock anchoring, and soil stabilization.

The MEGABolt-PT Bar is available in six prestressing steel grades: PSB500, PSB670, PSB785, PSB830, PSB930, and PSB1080. These grades cover yield strengths ranging from ≥500 MPa up to ≥1080 MPa and tensile strengths up to ≥1230 MPa, making them suitable for light-duty to heavy-load structural applications.

The MEGABolt-PT Bar is available in nominal diameters of 15 mm, 18 mm, 20 mm, 25 mm, 32 mm, 36 mm, 40 mm, 50 mm, and 63.5 mm. Nominal sectional areas range from 176 mm² (for 15 mm) up to 3,167 mm² (for 63.5 mm), with weights per metre scaling accordingly from 1.47 kg/m to 26.5 kg/m.

The MEGABolt-PT Bar is used in two broad categories of applications. For permanent structures, it is used in post-tensioned concrete, bridge deck linking, shear keys for seismic resilience, segment or girder connections, and pier reinforcement. For temporary structures, it is used to anchor temporary steel frame supports, as lifting bars in segment launching trusses, and for stitching bridge segments together during construction.

The MEGABolt-PT Bar system is designed for reuse. Argentium recommends limiting reuse to a maximum of 10 times, assuming each component starts in good condition and is properly maintained. However, the actual number of reuses should be evaluated and verified by the project engineer based on site conditions and the specific application involved.

Unlike conventional threaded bars that have threads only at machined ends, the MEGABolt-PT Bar has a continuous deformation pattern rolled along its entire length. This means couplers and anchorages can be positioned anywhere along the bar, not just at the ends. The wide-pitch thread design also enables faster installation and is better suited for temporary applications. The bar can also be cut to size on-site, and retensioning is possible without causing any damage to the system.

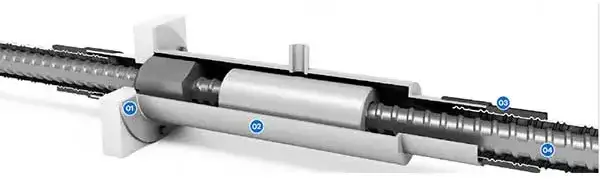

Argentium offers several corrosion protection methods for the MEGABolt-PT Bar. These include heat shrink sleeves, grease filling, paint coatings, pressure grouting, and combinations of these methods. Dedicated accessories such as starter steel tubes welded to plates, protecting sleeves for covering nuts and couplers, galvanized steel sleeves or plain HDPE tubes for bar protection, and heat-shrink or adhesive tapes are all available as part of the system.

Yes, the MEGABolt-PT Bar is specifically engineered for rock and soil anchor applications in addition to post-tensioned concrete. Its high-strength prestressing steel grades (up to PSB1080) make it well-suited for demanding geotechnical environments including slope stabilization, tunnel support, retaining wall anchoring, and ground reinforcement in soft or unstable soils.

Yes. The MEGABolt-PT Bar system is specifically designed to be cut at the site as needed. Since the deformation thread pattern runs continuously along the full bar length, any cut point can still accept standard couplers, nuts, and bearing plates without needing additional machining or threading, offering maximum flexibility during installation.

The MEGABolt-PT Bar system comes with a comprehensive range of accessories including full-force nuts, spherical nuts, coupler systems for joining bar lengths, bearing plates for load distribution, starter steel tubes, protecting end cap sleeves, and various corrosion protection components. Argentium also offers a dedicated engineering support team to assist with accessory selection and system design.

The MEGABolt-PT Bar demonstrates excellent stress relaxation performance. For grades such as PSB500 and PSB670, the relaxation rate after 1,000 hours is ≤3%, with a 10-year extrapolated rate of ≤1.5%. This low relaxation ensures that the prestress force applied to structural elements is maintained over extended service periods, which is critical for long-term infrastructure stability.

The MEGABolt-PT Bar is supplied in India by Argentium International Private Limited, headquartered at Daryaganj, New Delhi. Argentium is India’s leading ground support equipment manufacturer and supplier with over 30 years of experience. The product conforms to international quality standards and is backed by full technical and engineering support.

Compared to traditional post-tensioning strand systems, the MEGABolt-PT Bar offers simpler installation, especially in confined spaces or temporary applications. The continuous thread allows connection at any point, the wide-pitch design speeds up nut engagement, and the bar can be retensioned multiple times. It is particularly advantageous in applications requiring precise load control, easy on-site cutting, and repeated use, such as temporary formwork anchoring or staged construction.

Yes. The MEGABolt-PT Bar is manufactured to conform to international quality standards applicable to prestressing steel bars. The technical specifications — including yield strength, tensile strength, elongation, and stress relaxation — align with globally recognized standards for structural and geotechnical prestressing applications. Argentium provides full technical documentation and engineering support to assist in specifying the correct grade and size for each project.

You can contact Argentium International Private Limited directly for quotes, product catalogues, and technical support. Reach their New Delhi office at +91 11 23245114 or +91 9810238422, or email admin@argentium.in. A downloadable product PDF catalogue is also available on the MEGABolt-PT Bar product page at argentium.in. A specialized design team is available to provide dedicated engineering support for your project requirements.
